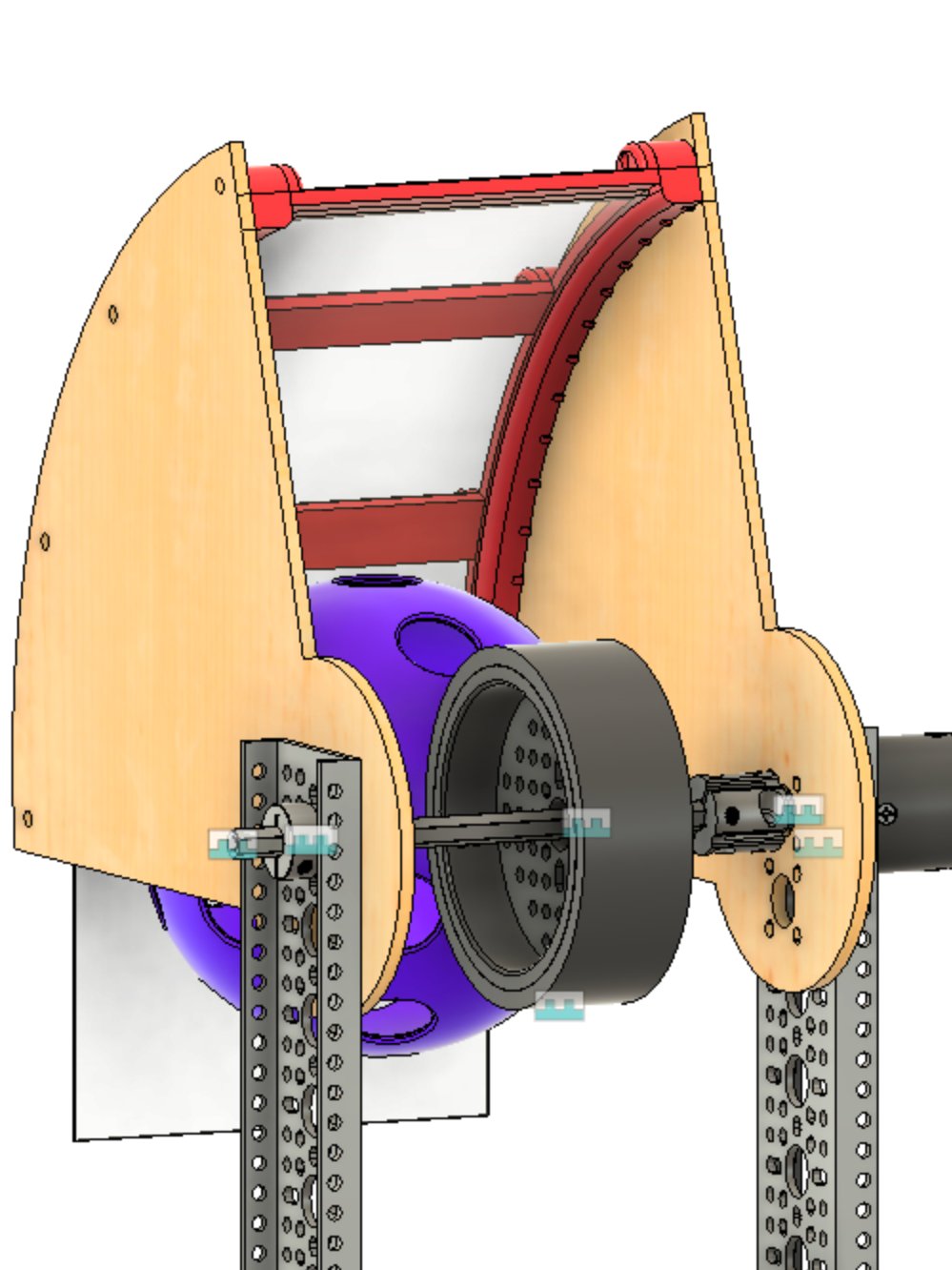

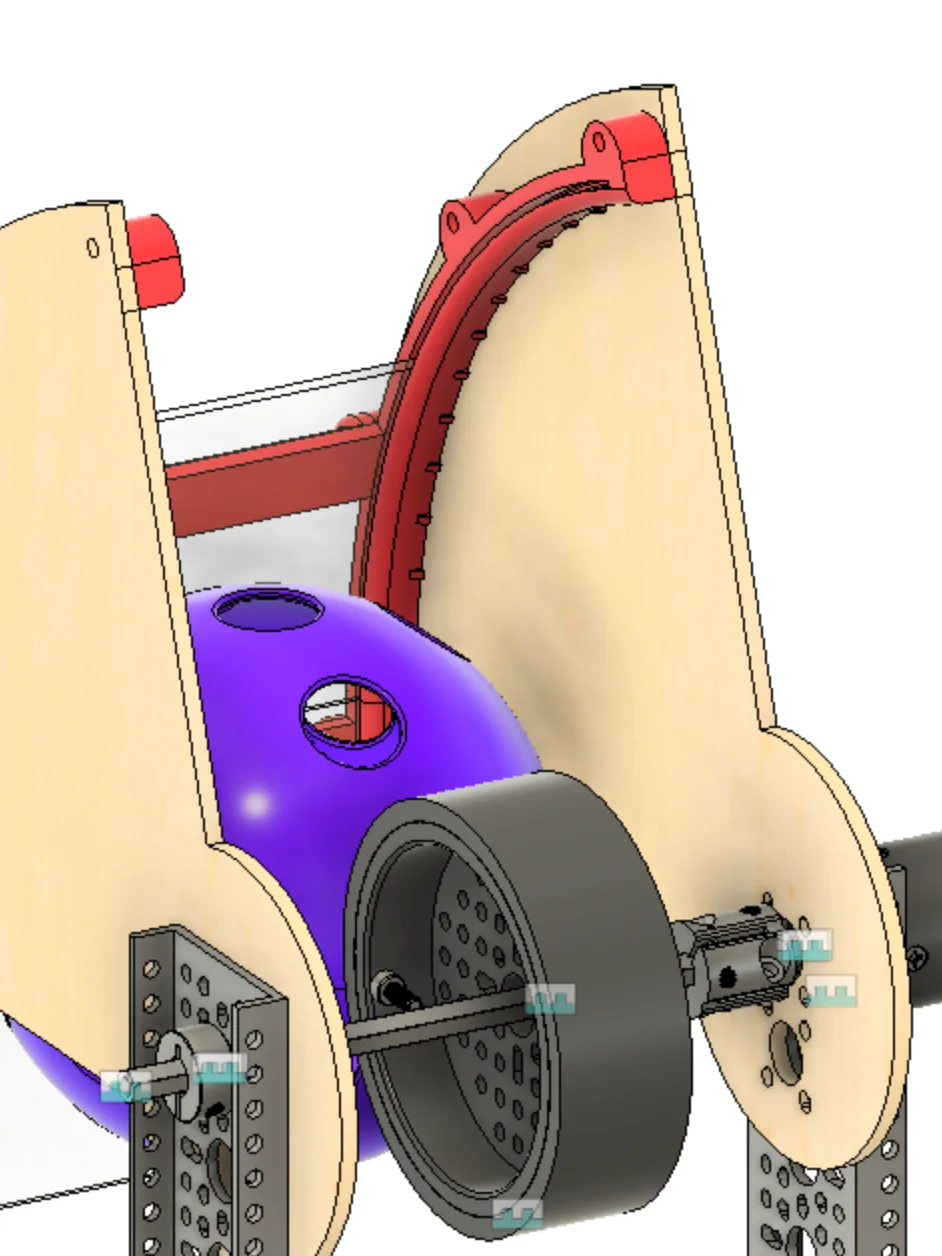

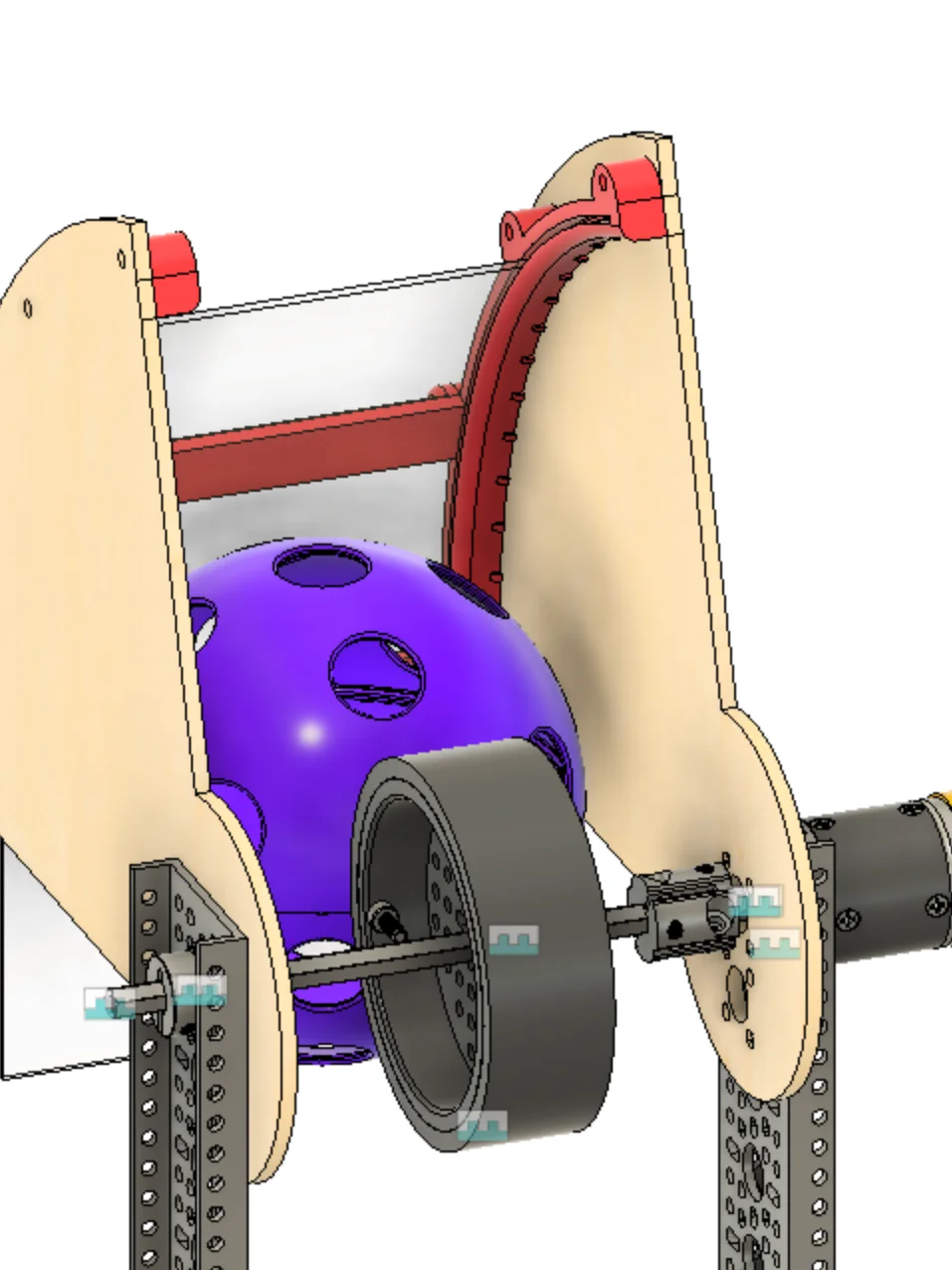

A Prototype design for a hooded flywheel. The intention of this design is to allow users to be able to manually slide a sheet of polycarbonate to find key angles needed for launching a 12.7cm ball from a variety of distances away from a target.

Key features:

1. adjustable "hood" with a sheet of 1.5mm polycarbonate. This polycarbonate can be slid back and forth inside of the channel to change the angle of the hood

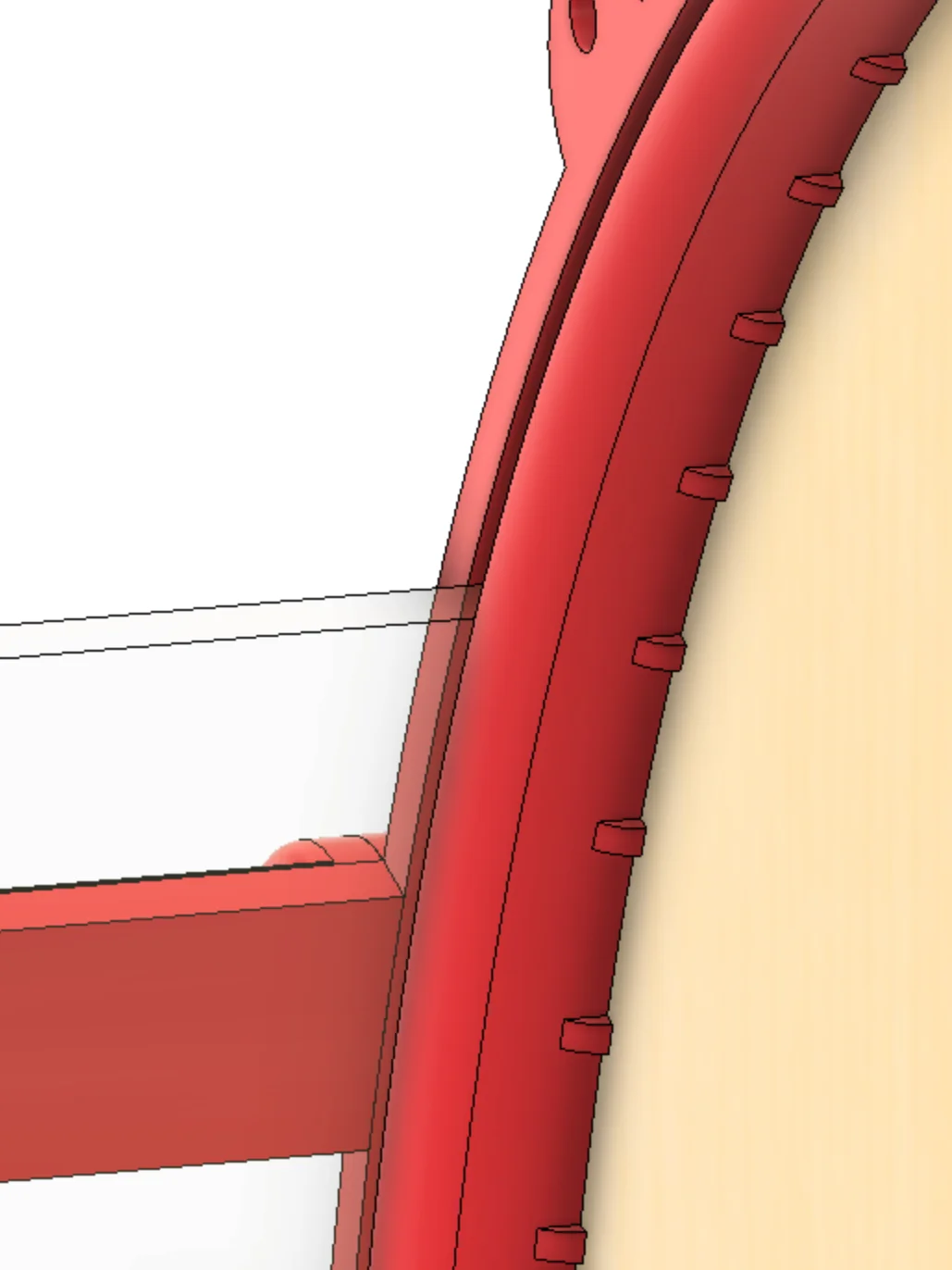

2. hood angles from 0 - 70 degrees. 3d printed notches every 5 degrees to aid with angle finding
3. Ball Compresison of 6.5mm
4. Removeable back "cross braces" depending on what angle you're testing

The design uses:

• 1,5mm polycarbonate
• 3d printed "slots" for support. These could be made from any material, though I'd suggest PETG or PCTG.
• 4mm multiplex side plates. These could be 3d printed as well, or CNC'd out of polycarbonate, though I'd suggest you cut some holes in to not use so much material.
• m4 bolts are used to clamp the side plates, 3d-printed channels, and cross braces.
• I'd suggest a bare motor 6K RPM motor with this.

Note: the STEP files are uploaded in a .zip folder. You must first unzip the folder in order to import the file into your CAD program of choice.
